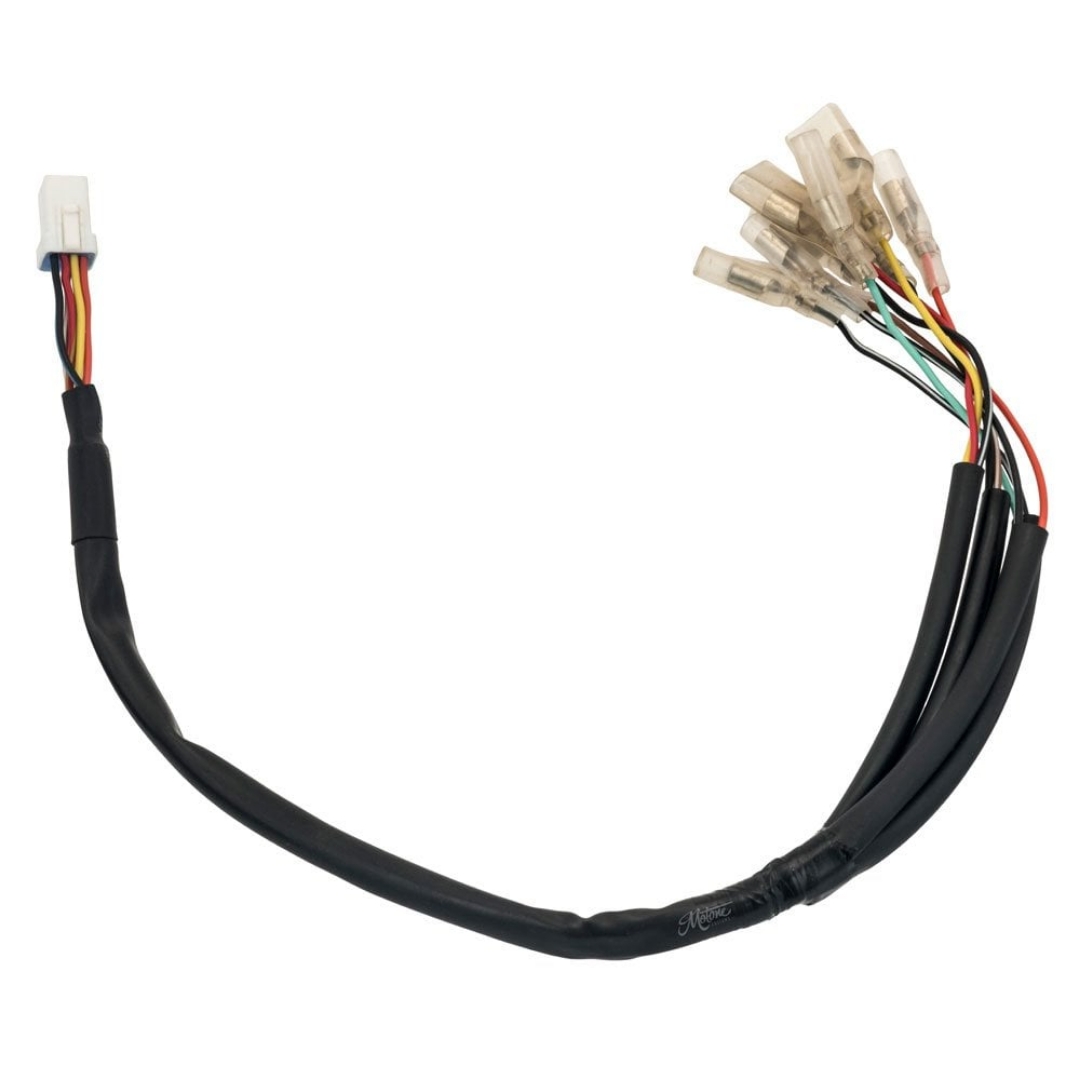

Motone Rear Wiring Loom Bobber/Scrambler 1200/Speedmaster

Plug and Play Rear wiring Loom - this connects directly into the rear harness plug of your bike and allows you to fit after market Taillights, Indicators, Accessories etc without having to chop into the stock loom. Note that this loom contains a resistor to stop the issue causing engine warning light when fitting aftermarket Tail lights.

Compatible with the following models:
- Triumph Bobber
- Speedmaster 1200
- Scrambler 1200

Wired as Follows
Orange - R - is RHS Indicator
Brown - L - is LHS Indicator
As part of the T (Tail light) Section we have YELLOW as the Running Light, RED as the Brake Light as well as associated Earths for each of the above
The Tail light connectors all have double spades in the case that you are running for example our Pico 3in1 Rear lights which means you essentially have 2 tail lights (on on each side)
There is also a spare A Auxiliary Wire in Green which has its own earth, you can either use this to power an external device or you can use it to power a Number Plate Illumination Light if you are running a side mount plate kit which doesn't have a tail light with a license plate illumination light section of its own.
And remember the top 3 electrical faults are 1 Bad Earth, 2 Bad Earth, 3 Bad Earth. Always check fuse box - and for belt and braces you may want to disconnect first battery before plugging in new parts...

SKU: DDM016
