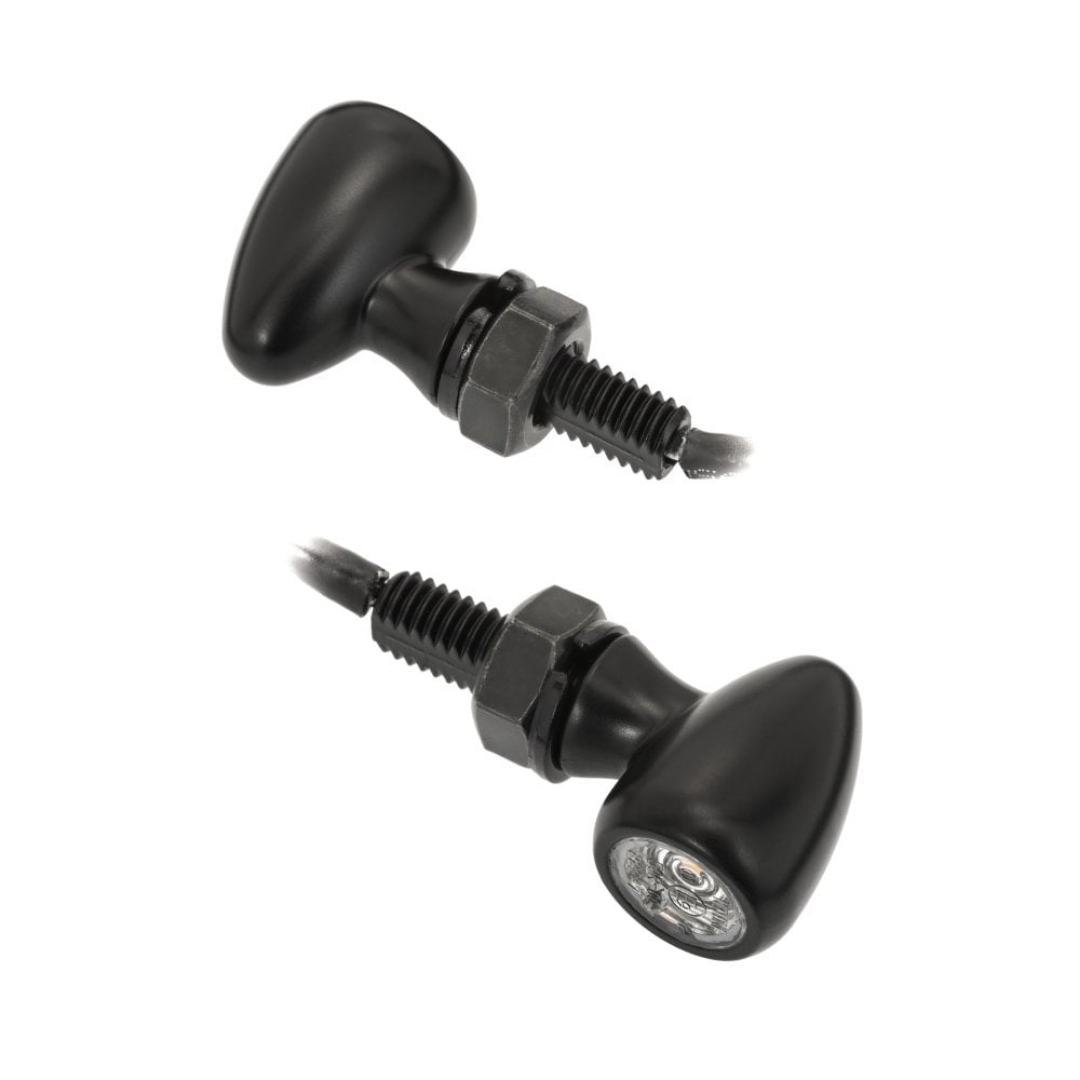

Motone PICO MULTI LED 3in1 Taillight/Brake Light/Indicator Turn Signals - PAIR - Black - M8

MOTONE PICO MULTI LED 3 in 1 :
TURN SIGNAL (INDICATORS), BRAKE LIGHT, RUNNING LIGHT (TAIL LIGHT), UNIT HERE : PAIR [2 LIGHTS]
ECE R148 - LAB TESTED FULLY COMPLIANT ROAD LEGAL, CUSTOM PCB , FULL METAL JACKET - ALUMINIUM HOUSING, RSAM SMD LED, BRAIDED CABLES TERMINATING IN 3.9MM BULLET CONNECTORS, WATERPROOF, RUBBER BOOT CABLE TIDY , INPUT : DC 12v
- Indicator Light Power : 1.2W
- Running Light Power : 0.5W
- Brake Light Power : 1.2W
- Indicator Brightness : 77 Cd
- Running Light Brightness : 9 Cd
- Brake Light Brightness : 50 cd
- PMMA LENS (TIR Optical Lense tech)
- SIZE W 18 x H 44 x D 25.5 mm
- MOUNTED ONTO A M8 THREAD
There are 4 Wires exiting each Light Unit - Functionality is as follows :
- RED - BRAKE LIGHT
- YELLOW - INDICATOR
- BROWN - RUNNING LIGHT
- BLACK - EARTH NEUTRAL

Combine with various brackets and adapters we make to fit anywhere on your bike we are working on more options all the time
TRILINE Brackets to mount to Rear Shock CLAMPIT Brackets to mount to front fork 41mm (other sizes also coming) Billet Adapter Brackets mount M8 Indicators such as the PICO direct to stock Triumph Indicator position (2016 and up bikes) AJAX - Designed specifically for the Triumph Bobber these brackets allow you to fit signals onto the rear of the bike using the airbox bolts Number Plate Brackets - Adapter Brackets that allow the lights to be fit direct to your rear number plate bracket without needing to drill any holes etc Under Seat Brackets LC Triumph - Use the bolt holes under the rear of the seat to fit Indicators towards rear of frame - Liquid Cooled Bonneville so 2016 to 2025+) Under Seat Bracket AC Triumph - Under seat brackets for the aircooled (2001-2015) Bonnevilles Boomerang Bracket - fits on the bottom yoke suitable for the Street Twin/Speed Twin 900

Wiring Adapters Please note if you have one of our tail tidies or rear loom adapters they would already terminate in a 3.9mm Bullet so plug and play from there one
Each Light Unit has 4 Wires that terminate in a standard Japanese spec 3.9mm Bullet - The Red wire is the Brake Light, the Yellow wire is the Running Light, the Brown Wire is the Indicator Light and the Black is the Earth/Neutral
If you want to see a wiring adapter/bracket combo for your bike please nag us and we will do our best to make it We have a Wiring Loom adapter for the Triumph Bobber / Scrambler 1200 that can be run directly with these MULTI 3in1 Indicators available here part code DDM016

SKU: MFX004
